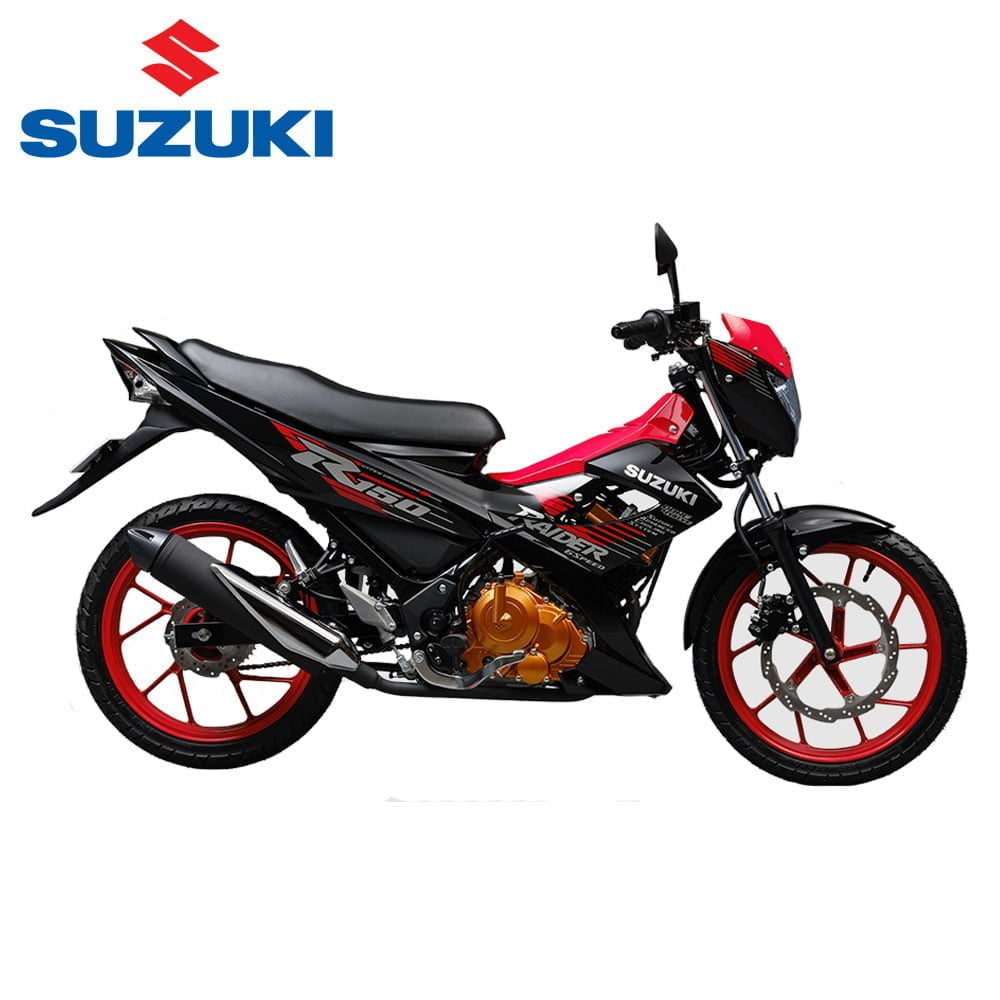

Suzuki Motorcycle Raider R150 Carburetor

Description

Engine

• MAX POWER: 11.5kw / 9,500rpm

• MAX TORQUE: 12.4 Nm / 8,500rpm

• ENGINE TYPE: 4-Stroke, Oil-Cooled, 4-Valve, DOHC (twincam), 1 Cylinder

• BORE X STROKE: 62.0mm x 48.8mm

• ENGINE DISPLACEMENT: 147.3cc

• COMPRESSION RATIO: 10.2:1

• FUEL SYSTEM: Carburetor

• COOLING SYSTEM: Oil-Cooled

• LUBRICATION: Wet Sump

• STARTING: Electric & Kick

• IGNITION SYSTEM: DC-CDI (Digital)

• TRANSMISSION TYPE: Man. 6-spd, Constant Mesh

• CLUTCH TYPE (PRIMARY): Hydraulic with Multi layer

Chasis Specifications

• SUSPENSION (F): Telescopic, coil spring oil damped

• SUSPENSION (R): Swingarm with Mono Shock up

• TIRE SIZE (F): 70/90 – 17 38P (Tubeless Type)

• TIRE SIZE (R): 80/90 – 17 44P (Tubeless Type)

• BREAK (F): Disc

• BREAK (R): Disc

• FUEL TANK CAPACITY: 4.9L

Dimensions

• OVERALL LENGTH: 1,940mm

• OVERALL WIDTH: 652mm

• OVERALL HEIGHT: 941mm

• WHEELBASE: 1,280mm

• GROUND / ROAD CLEARANCE: 140mm

• SEAT HEIGHT: 764mm

• DRY WEIGHT: 106kg

Note: Available in Visayas and Mindanao only

* Price inclusive of Credit Card and Bank Charge
