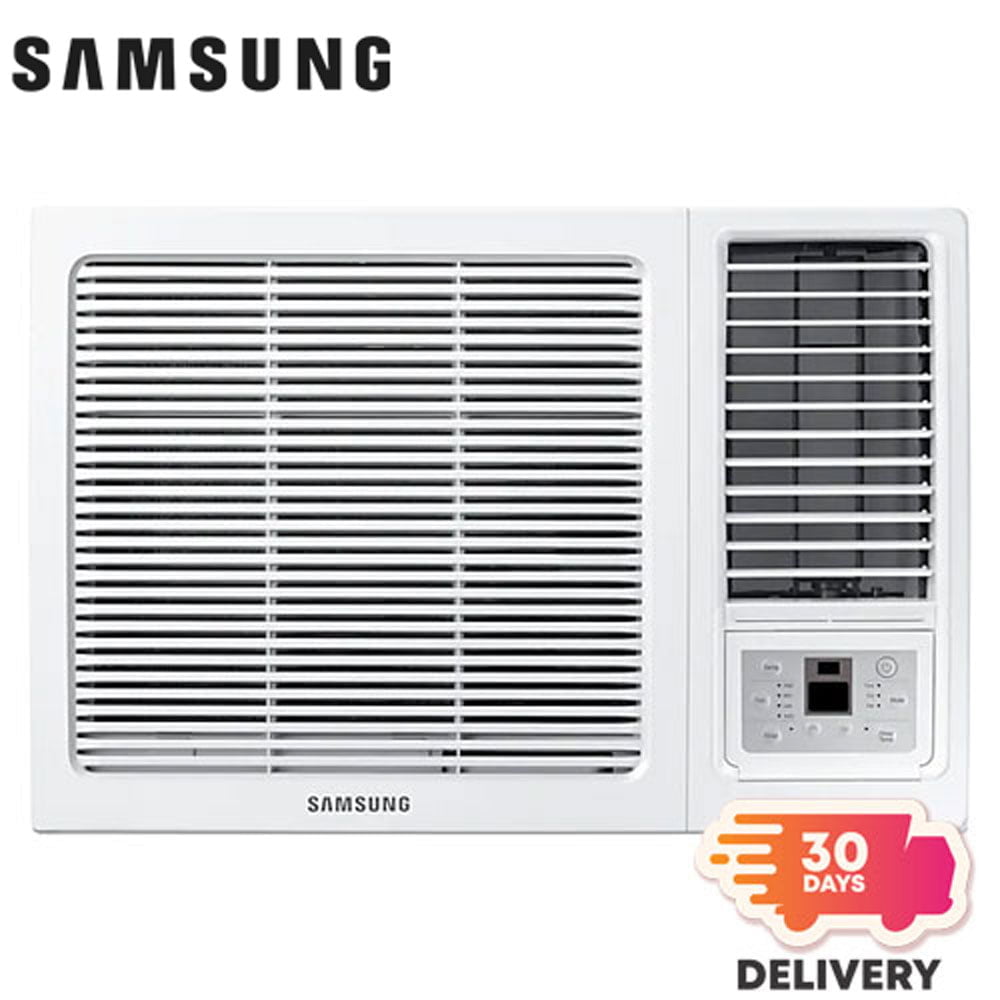

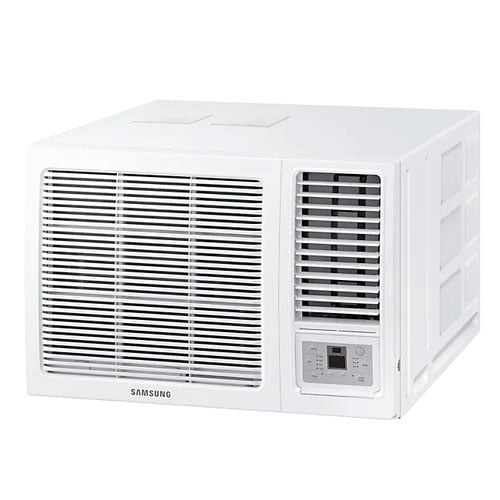

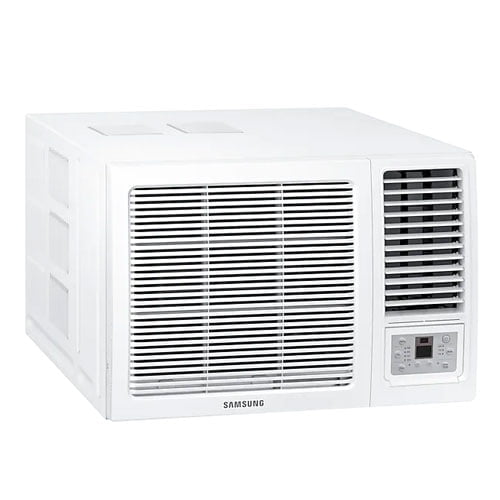

Samsung 1.0 HP Window-type Inverter AW09AYHGAWKNTC

Description

Capacity

• Capacity (Cooling, W): 2640 W

• Capacity (Cooling, kJ/h): 9500 kJ/hW

Power Input (Nominal)

• Cooling: 825 W

Current Input (Nominal)

• Cooling: 3.8 W

Power Input (Rated)

• Cooling: 6 W

Energy Efficiency

• EER (Cooling, W/W): 3.20 W/W

• EER (Cooling, Btu/hW): 10.92 Btu/hW

• Permissible Excessive Operating Pressure for the Discharge Side: 4.3 Mpa

• Permissible Excessive Operating Pressure for the Suction Side: 2.5 Mpa

• Maximum Allowable Pressure: 4.7 Mpa

• Climate Type: T1

• Isolation: I

• Moisture Protection: IPX4

Noise Level

• Sound Pressure Level (H/M/L, dBA)

• 54/51/49 dBA

Electrical Data

• Power Source(Φ/V/Hz): 1 / 230 / 60

Physical Specification

• Package Dimension (WxHxD, ㎜*㎜*㎜): 623×425×806 mm

• Net Dimension (WxHxD, ㎜*㎜*㎜): 560×375×708 mm

• Gross Weight (kg): 46 kg

• Net Weight(kg): 43 kg

Technical Information

• Refrigerant (Type): R32

• Refrigerant (Charging, kg): 0.55 kg

• Low Ambient (Cooling, ℃): 18~43 ℃

• Compressor Type: Rotary

Convenience

• 24-Hour Timer: Yes

Operating Mode

• Auto Mode: Yes

• Good Sleep: Yes

• Dehumidification: Yes

Smart

• WiFi Embedded: No

App Connectivity

• SmartThings App Support: No

Note: Available in Visayas and Mindanao

* Delivery in 30 days
