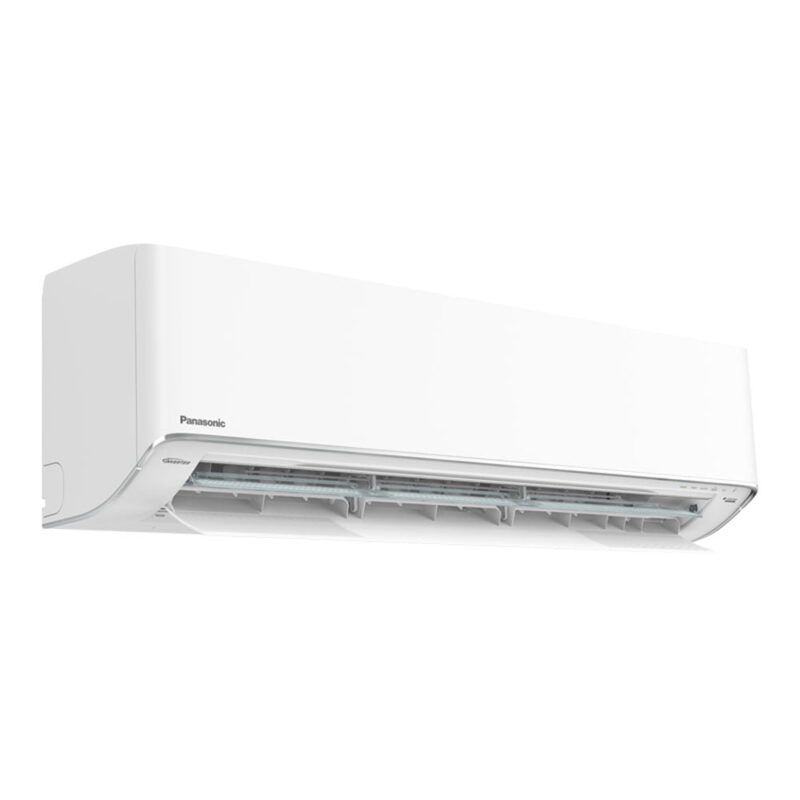

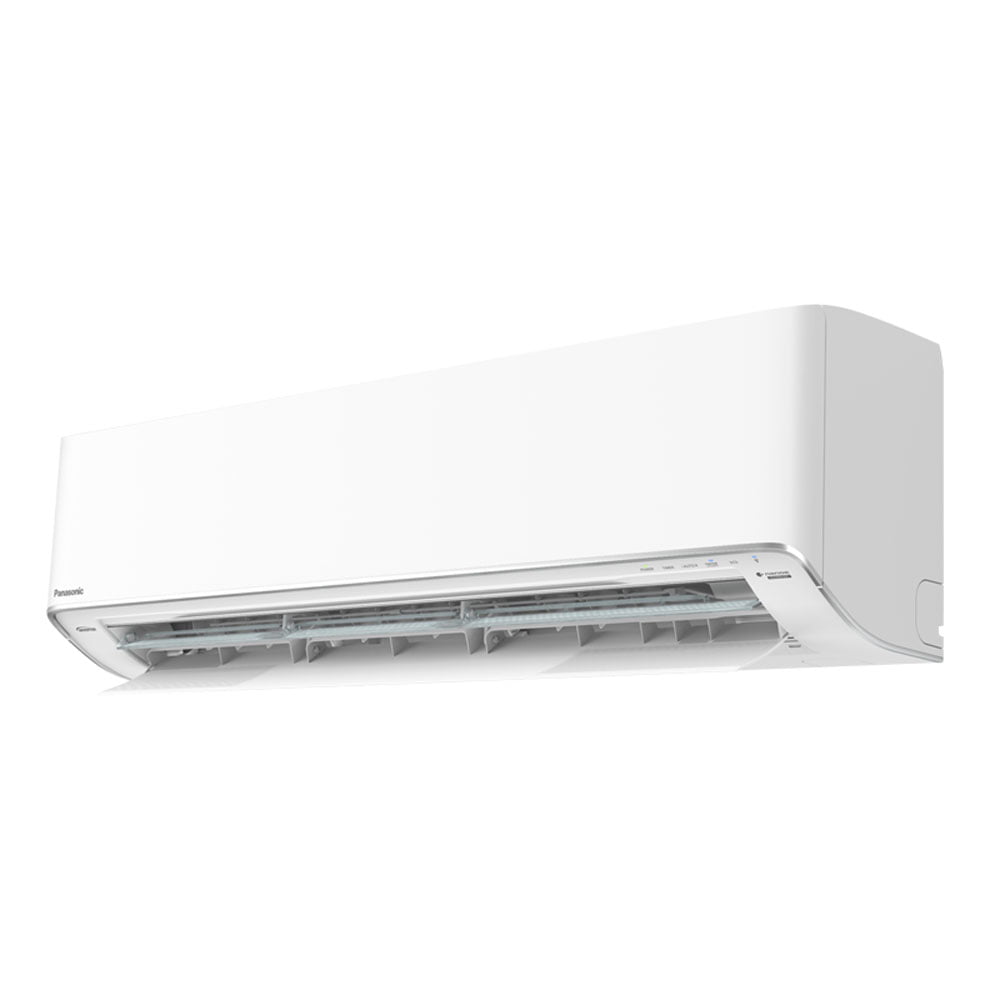

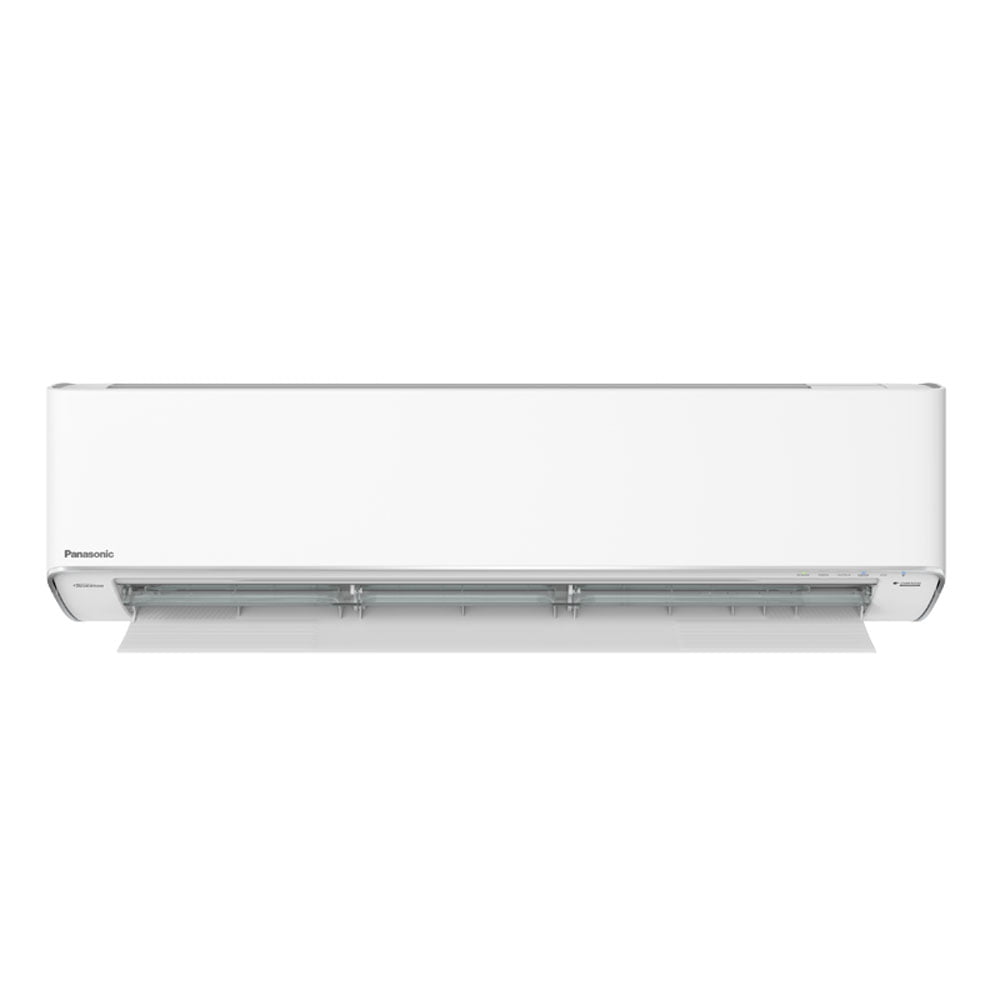

Panasonic 1HP Aero Series Premium Inverter Split Type Aircon CS/CU-XU9XKQ

Description

Cooling Capacity

• 2.55 (0.92-3.20) kW

• 9,180 (3,310-11,520) kJ/h

EER (min-max)

• 14.34 (14.71-13.09) kJ/hW

Electrical Data

• Voltage: 230 V

• Current: 3.1 A

• Power Input (min-max): 640 (225-880) W

Moisture Removal

• 1.6 L/h

• 3.4 Pt/h

Air Circulation

• Indoor: 11.8 m³/min (415 ft³/min)

• Outdoor: 27.6 m³/min (970 ft³/min)

Noise Level

• Indoor (H / L / Q-Lo): 38/26/19 dB(A)

• Outdoor (H): 47 dB(A)

Dimensions (Indoor)

• Height: 295 mm (11-5/8 inch)

• Width: 870 mm (34-9/32 inch)

• Depth: 229 mm (9-1/32 inch)

Dimensions (Outdoor)

• Height: 511 mm (20-1/8 inch)

• Width: 650 mm (25-19/32 inch)

• Depth: 230 mm (9-1/16 inch)

Net Weight

• Indoor: 10 kg (22 lb)

• Outdoor: 18 kg (40 lb)

Refrigerant Pipe Diameter

• Liquid Side: ø 6.35 mm (1/4 inch)

• Gas Side: ø 9.52 mm (3/8 inch)

Pipe Extension

• Chargeless Pipe Length: 7.5 m

• Maximum Pipe Length: 20 m

• Maximum Elevation Length: 15 m

• Additional Refrigerant Gas*: 10 g/m

Power Supply

• Outdoor

Comfort Features

• iAUTO-X: Yes

• Humidity Sensor: Yes

• ECO Mode with A.I.: Yes

• Inverter Control: Yes

• Sleep Mode: Yes

• Quiet Mode: Yes

• Soft Dry Operation Mode: Yes

• Personal Airflow Creation: Yes

Cleaner Air Features

• nanoe™ X: Yes

• nanoe-G: Yes

• Odour Removing Function: Yes

• Removable Washable Panel: Yes

Convenience Features

• 24-Hour Dual ON & OFF Real Setting Timer: Yes

• LCD Wireless Remote Control: Yes

• Wireless LAN Remote Control (For Internet Connection): Yes (Built-in)

• Wired Remote Control: Yes (Optional)

Reliability Features

• Random Auto Restart: Yes (32 Restart Patterns)

• Blue Fin Condenser: Yes

• Long Piping (max.): 20 m

• Top Panel Maintenance Access: Yes

• Self-Diagnostic Function: Yes

Note: Available in Visayas and Mindanao
